GSD API — send documents for signature from your own code

The API does one job well: take a template you already built in the GSD editor, send it to a signer, tell you when it's done, and hand you the signed PDF plus the certificate. Everything below is copy-pasteable — send this from Terminal and you'll have a real envelope out in about 15 minutes.

1. The 15-minute quickstart

Step 1 — get an API key

In the app, go to Settings → API & Webhooks and create a key (API access is included on the Business plan). The key is shown once — copy it right away. It looks like gsd_live_… and goes in the Authorization header of every request. Section 2 covers keys in detail.

Step 2 — list your templates

Send this from Terminal (swap in your key):

curl -H "Authorization: Bearer gsd_live_YOUR_KEY" \
  https://gsdhere.com/api/v1/templates

You get back every active template, with the signer roles you'll need in the next step:

{
  "ok": true,
  "templates": [
    {
      "id": 12,
      "name": "Gym Liability Waiver",
      "created_at": "2026-08-01T09:12:44.000Z",
      "roles": [ { "key": "member", "label": "Member" } ],
      "has_payment_defaults": false
    }
  ],
  "has_more": false,
  "next_after": null
}

Step 3 — create an envelope from a template and send it

curl -X POST https://gsdhere.com/api/v1/envelopes \
  -H "Authorization: Bearer gsd_live_YOUR_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "template_id": 12,
    "signers": [
      { "role": "member", "name": "Ana Diaz", "email": "ana@example.com" }
    ],
    "send": true
  }'

One signer per template role. The response tells you it went out:

{
  "ok": true,
  "envelope": {
    "id": 341,
    "name": "Gym Liability Waiver",
    "status": "sent",
    "template_id": 12,
    "signers": [
      { "id": 902, "role": "member", "name": "Ana Diaz", "email": "ana@example.com" }
    ]
  },
  "send": { "sent": 1, "failed": [] }
}

Ana now has a signing link in her inbox. (Tip: pass an Idempotency-Key header on POSTs — if your script retries, you won't double-send. Section 7 has the full semantics.)

Step 4 — check status, then download the signed PDF

curl -H "Authorization: Bearer gsd_live_YOUR_KEY" \
  https://gsdhere.com/api/v1/envelopes/341

{
  "ok": true,
  "envelope": {
    "id": 341,
    "name": "Gym Liability Waiver",
    "status": "completed",
    "template_id": 12,
    "created_at": "2026-08-22T15:03:11.000Z",
    "sent_at": "2026-08-22T15:03:12.000Z",
    "completed_at": "2026-08-22T15:09:40.000Z",
    "expires_at": null,
    "payment_status": "none",
    "signers": [
      {
        "id": 902, "name": "Ana Diaz", "email": "ana@example.com",
        "role": "Member", "status": "signed", "signing_order": 1,
        "viewed_at": "2026-08-22T15:08:02.000Z",
        "signed_at": "2026-08-22T15:09:40.000Z",
        "declined_at": null,
        "payment": { "required": false, "status": "none", "amount_usd": null }
      }
    ]
  }
}

Once status is completed, both downloads exist:

curl -H "Authorization: Bearer gsd_live_YOUR_KEY" \
  -o waiver-signed.pdf https://gsdhere.com/api/v1/envelopes/341/documents/signed

curl -H "Authorization: Bearer gsd_live_YOUR_KEY" \
  -o waiver-certificate.pdf https://gsdhere.com/api/v1/envelopes/341/certificate

That's the whole loop. Rather than polling, add a webhook (section 5) and we'll tell you the moment it completes.

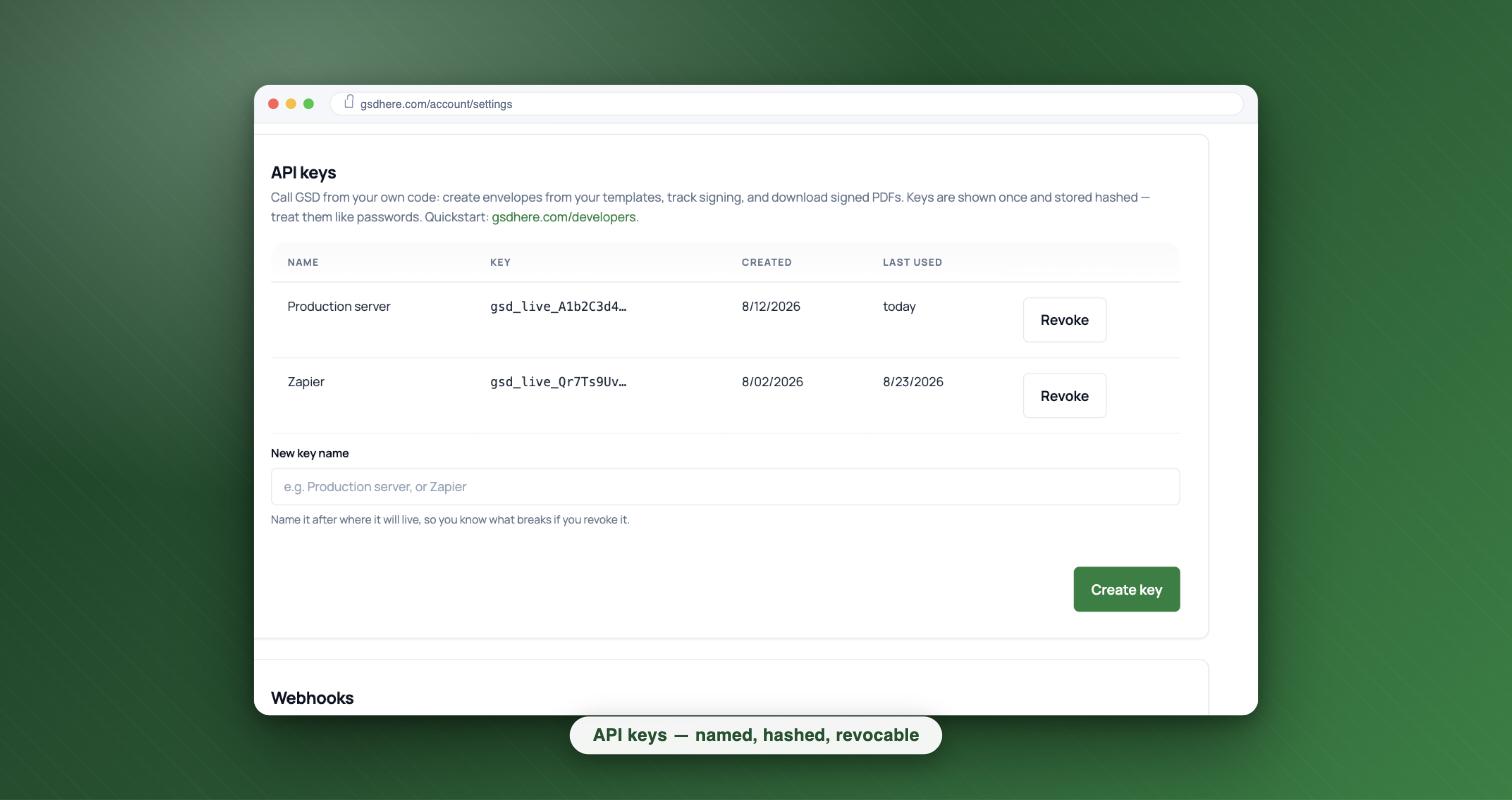

2. Authentication & keys

Every request carries a bearer token: Authorization: Bearer gsd_live_…. Keys look like gsd_live_A1b2C3d4… — the fixed gsd_live_ prefix followed by 32 random characters. There is no other credential: no cookies, no sessions, no OAuth dance.

• Create keys in the app under Settings → API & Webhooks (the owner or an admin can do it). Name each key for the system that will hold it — "Booking server", "Zapier" — so you can tell them apart later.
• Shown once. The full key appears exactly once, at creation. After that the app shows only the first characters (gsd_live_A1b2C3d4…) — we don't store the full key, so we can't show it again. Lost a key? Revoke it and create a new one; it's free.
• Revocation is instant. Revoking a key kills it on the next request. Nothing else changes — envelopes it created stay exactly as they are.
• Scopes. A key can be limited to envelopes:read, envelopes:write or templates:read; a key created without scopes can do everything the API offers. A key missing a scope gets a 403 insufficient_scope naming the scope it needs.

Treat keys like passwords: server-side config or a secrets manager, never in client-side code, never in a repository.

3. Testing without real emails

Two habits make test runs painless: put "TEST" in the message.subject so nobody mistakes the email, and void test envelopes from the app when you're done so your envelope list stays clean.

4. A real integration, end to end: gym booking → waiver

Say your booking system takes a class reservation and the member must sign a liability waiver — and pay a $25 day fee — before they walk in. When the booking is confirmed, your server makes one call. Here it is with prefill, a custom email message, and payment collected before signing:

POST /api/v1/envelopes
Authorization: Bearer gsd_live_YOUR_KEY
Content-Type: application/json
Idempotency-Key: booking-58213

{
  "template_id": 12,
  "signers": [
    { "role": "member", "name": "Ana Diaz", "email": "ana@example.com", "phone": "+15125550137" }
  ],
  "prefill": {
    "class_name": "Kettlebell Basics",
    "class_date": "2026-09-02"
  },
  "message": {
    "subject": "Your waiver for Kettlebell Basics",
    "body": "Please sign before your first class on Sep 2 — takes about a minute."
  },
  "payment": { "amount_usd": 25, "before_signing": true },
  "send": true
}

Response — 201 Created:

{
  "ok": true,
  "envelope": {
    "id": 355,
    "name": "Gym Liability Waiver",
    "status": "sent",
    "template_id": 12,
    "signers": [
      { "id": 951, "role": "member", "name": "Ana Diaz", "email": "ana@example.com" }
    ],
    "payment": { "amount_usd": 25, "before_signing": true }
  },
  "send": { "sent": 1, "failed": [] }
}

Ana pays, signs, and your webhook receives envelope.payment_updated and then envelope.completed. Your handler checks in the booking and pulls the signed waiver into your records:

GET /api/v1/envelopes/355

{
  "ok": true,
  "envelope": {
    "id": 355,
    "name": "Gym Liability Waiver",
    "status": "completed",
    "template_id": 12,
    "created_at": "2026-08-30T18:20:05.000Z",
    "sent_at": "2026-08-30T18:20:06.000Z",
    "completed_at": "2026-08-30T18:26:51.000Z",
    "expires_at": null,
    "payment_status": "paid",
    "signers": [
      {
        "id": 951, "name": "Ana Diaz", "email": "ana@example.com",
        "role": "Member", "status": "signed", "signing_order": 1,
        "viewed_at": "2026-08-30T18:24:10.000Z",
        "signed_at": "2026-08-30T18:26:51.000Z",
        "declined_at": null,
        "payment": { "required": true, "status": "paid", "amount_usd": 25 }
      }
    ]
  }
}

GET /api/v1/envelopes/355/documents/signed   → the signed waiver (PDF)
GET /api/v1/envelopes/355/certificate        → certificate of completion (PDF)

The certificate notes the envelope was created via the API and by which key — the evidence pack is identical to one sent from the app.

5. Webhooks — know when it's done without polling

Save a webhook URL in Settings → API & Webhooks and we POST you JSON on envelope.completed, envelope.declined, envelope.voided and envelope.payment_updated. Webhook URLs must be public HTTPS; private or internal addresses are rejected.

The reliability contract

• Delivery is at-least-once. We record every delivery before we attempt it, and your endpoint may occasionally see the same event twice — de-duplicate on delivery_id (below).
• Failures are retried 5 times after the initial attempt, at 1 minute, 5 minutes, 30 minutes, 2 hours and 6 hours — roughly 9 hours of cover for an outage on your side. A 2xx response ends the chain; anything else (or a timeout) schedules the next try.
• Every delivery is signed with your endpoint's secret (HMAC-SHA256 over the exact raw body, in the X-GSD-Signature header, as sha256=<hex>). The event name rides in X-GSD-Event and the delivery id in X-GSD-Delivery-Id.

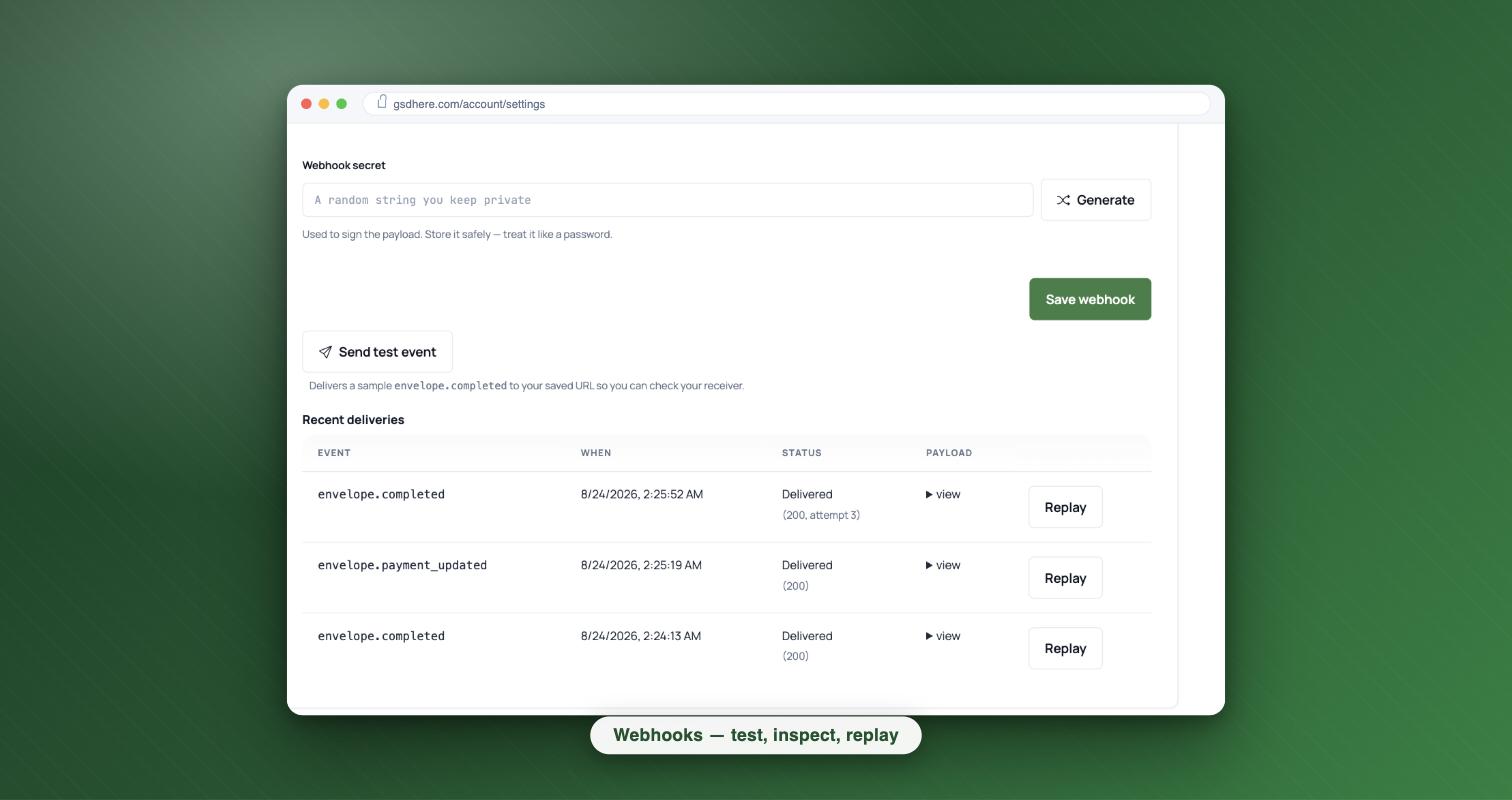

• You can see and re-run everything: the settings page shows the last 20 deliveries with status and attempt count, a one-click Replay per row, and a Send test event button to try your receiver before going live.

Verify the signature, check freshness, and de-duplicate in ~20 lines of Node:

const crypto = require('crypto');
const seen = new Set();  // swap for your datastore in production

app.post('/webhooks/gsd', express.raw({ type: 'application/json' }), (req, res) => {
  const expected = 'sha256=' + crypto
    .createHmac('sha256', process.env.GSD_WEBHOOK_SECRET)
    .update(req.body)
    .digest('hex');
  const given = req.get('X-GSD-Signature') || '';
  const ok = given.length === expected.length &&
    crypto.timingSafeEqual(Buffer.from(given), Buffer.from(expected));
  if (!ok) return res.status(401).end();

  const { event, payload, timestamp, delivery_id } = JSON.parse(req.body);

  // Freshness: the signed body carries the time it was built. Reject anything
  // older than ~5 minutes — a captured request can't be replayed at you later.
  if (Math.abs(Date.now() - timestamp) > 5 * 60 * 1000) return res.status(400).end();

  // De-dup: retries and manual replays deliver the same delivery_id again.
  if (seen.has(delivery_id)) return res.status(200).end();
  seen.add(delivery_id);

  res.status(200).end();  // answer 2xx fast — do your work after acking
});

The body carries event, payload (ids, statuses, signer id + email — never document contents), a timestamp and the delivery_id. Because each retry is signed over a fresh timestamp, the freshness check never rejects a legitimate retry.

6. When something goes wrong

Every error is the same shape — a machine code, a human message that echoes the value you sent, a fix, and a docs link straight to the row below:

{ "ok": false, "error": { "code": "…", "message": "…", "fix": "…", "docs": "…" } }

A 404 not_found on an envelope id means the id isn't in your workspace — ids are per-workspace, so an id copied from another account (or another environment) will never resolve here.

7. Rate limits & idempotency

Rate limits

Two per-key budgets, both per minute:

• 120 requests a minute across everything the key does.
• 30 requests a minute for the write endpoints (POST /api/v1/envelopes and POST /api/v1/envelopes/:id/send) — a separate budget, so heavy reading never starves your sends.

Every response carries X-RateLimit-Limit and X-RateLimit-Remaining (on a write, they describe the 30/min write budget — the one that matters there). Going over either budget returns 429 rate_limited with a Retry-After header and retry_after_seconds in the body — wait that long and retry. If you're bumping the ceiling with polling, switch to webhooks (section 5).

Idempotency

Pass an Idempotency-Key header (any unique string up to 255 characters — a UUID, or your own id like booking-58213) on either POST and retries become safe:

• Same key + same body within 24 hours → the stored first response is replayed verbatim, flagged with an Idempotency-Replayed: true header. No second envelope, no second send.
• Same key + a different body → 409 idempotency_conflict. A key names one logical request; use a fresh key for each new one.
• Keys expire after 24 hours — after that the same key is treated as new.
• Only responses below 500 are stored: a 5xx is never replayed, so a retry after a server error re-executes for real.

8. Endpoint reference

Download OpenAPI spec  — the same seven endpoints as an OpenAPI 3.0 document, with full request/response schemas, ready for your client generator or API tooling.

9. Versioning & stability

v1 is stable. The contract:

• Additive changes ship without notice. New endpoints, new optional request fields, new fields in responses, new webhook event types. Write your integration so unknown JSON fields are ignored and unknown webhook events are acked with a 2xx and skipped — then additions can never break you.
• Breaking changes get a new version. Renaming or removing a field, changing a type or a status code — anything that could break a working integration — ships as a new versioned base path, and v1 keeps working for at least 6 months after we announce it on this page.

10. Data handling & evidence

• Storage. Documents are stored on cloud object storage and encrypted in transit and at rest.
• Evidence. Every completed envelope produces a certificate of completion — how each signer was authenticated, their consent record, and timestamps for each step. Envelopes created through the API note their API origination (and which key) on the certificate, so the evidence pack is identical to one sent from the app.
• Retention. Signed documents and certificates are retained according to your account's plan; download them via the API (sections 1 and 4) whenever you want your own copies.
• Compliance. The signing ceremony — consent, authentication, audit trail, tamper-evident final PDF — is designed to meet ESIGN and UETA requirements.

Questions, or something you need that isn't here? Email hello@gsdhere.com — it reaches the person who builds GSD, not a queue.
